Lumileds 3030 Chip UFO LED High Bay Luminaire With 140LM/W Output Luminous Efficiency

Brand Name : SUNLUXX

Model Number : HBL-150Watt

Certification : CE , RoHs

Place of Origin : China

MOQ : 1

Price : US$118.76/PCS unit EXW prices

Payment Terms : T/T, Western Union

Supply Ability : 5000 Pieces per Month

Delivery Time : 5-8 work days

Packaging Details : 37cm*37cm*27cm/1pcs

Beam angle : 60 ° , 90 ° , 120 °

Lumen : 21000

Color Temperature : 3000K,4000K,5000K,5700K

LED Brand : Lumileds 3030

Input Current : 0.68A@220VAC

Gross Weight : 5KGS

Installation mode : Hook Mount , Pendant Mount , Bracket Mount

Contact Now

Lumileds 3030 LED chip UFO LED Luminaire , 140LM/W Output Luminous Efficiency

UFO LED Luminaire 150Watt 21000 Lumens MEANWELL Driver Replaces 400W HID/HPS.

High Bay LED Warehouse Lighting is perfect for factory, warehouse, workshop, garage, backyard, supermarket, exhibition hall, stadium.With these High Bays outstanding efficiency,high lumen output, long life, superior lumen maintenance.

Features

1. Luminous efficacy up to 145 lm/W

2. Uniform light distribution

3. Dimmable function: It's connect Adiding 1-10V DC dimming switch/ 10V PWM signal dimming switch/ Resistance dimmer switch for adjusting the brightness.

4. Easily replace standard high bay fixtures.

5. Up to 33'(10m) mounting height

6. Lifetime rating of 50,000 hours with 5-year warranty, that's over 10 years @ 8-10 hours/ day.

Produce Code		HBL-60Watt HBL-80W 100W HBL-120W150W HBL-200W240W
Power		60Watt	80W 100W	120W 150W	200W 240W
Input Voltage		90-305VAC
Input Current		60W:0.27A@220VAC 80W: 0.36A@220VAC 100W:0.45A@220VAC 120W:0.55A@220VAC 150W:0.68A@220VAC 200W:0.91A@220VAC 240W:1.10A@220VAC
PF		>0.90@220VAC
DC output voltage		60W:54V 80W100W120W150W: 48V
DC output current		60W:1.05A 80W: 1.5A 100W: 1.9A 120W: 2.3A 150W:2.9A 200W:3.9A 240W:4.65A
Dimming (Optinal)		3 in 1 dimming (PWM, 0-10V, Resistor),Dali
CCT		4000K,5000K,5700K,3000K
Ra >70 5000K	Typical Flux	60W:9000Lm±5%,80W:12000Lm±5%,100W:15000Lm±5%, 120W:18000Lm±5%,150W:22500Lm±5%,200W:30000Lm±5% 240W:36000Lm±5%
LED Brand		Nichia 3030 and Lumileds 3030
Beam Angle		60°,90°,120°
Operation Temp		-40℃ ~ +45℃
Storage Temp		-40℃ ~ +85℃
Life Circle		45℃ 50000Hours
IP Class		IP66
IK Class		IK08
Certificate		CE,ROHS
Body Color		Black (default with RAL9005),Gray ( optional for RAL9007)

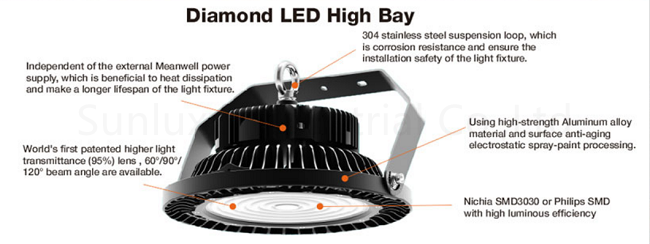

Product

Lumileds 3030 Chip UFO LED High Bay Luminaire With 140LM/W Output Luminous Efficiency

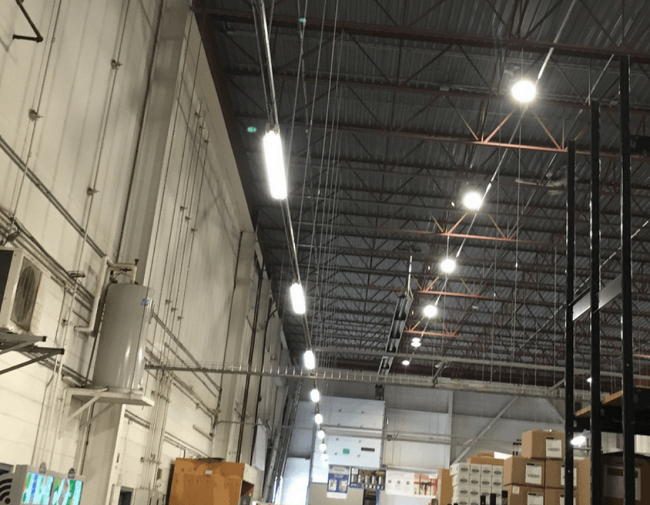

Application

Lumileds 3030 Chip UFO LED High Bay Luminaire With 140LM/W Output Luminous Efficiency
