Brand Name : SUNLUXX
Model Number : F8S120-60W
Place of Origin : China
MOQ : 12pcs
Price : US$41.85 / PC, EXW Price
Payment Terms : T/T, Western Union
Supply Ability : 8000pcs
Delivery Time : 5-8 working days
Packaging Details : 50*35*68cm/12pcs/Carton
Power : 60W
Voltage : 100-277VAC, 50 / 60HZ

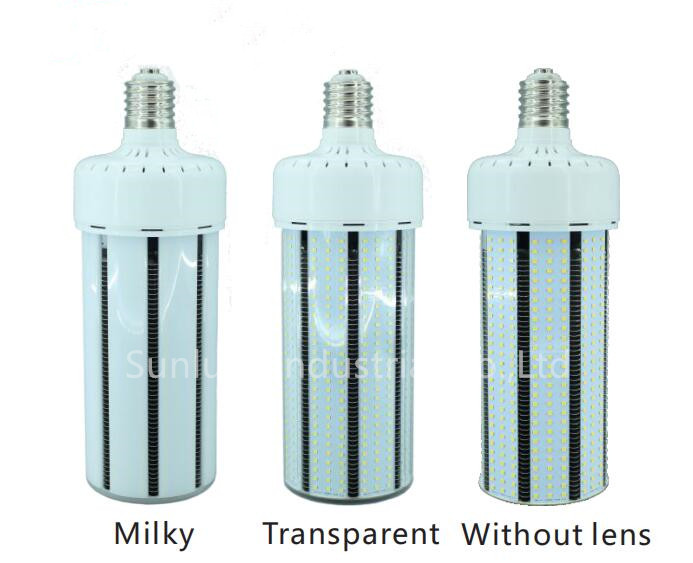

Lens : Milky Lens / Transparent Lens / Without Lens
Luminous Efficiency : 130lm/W
LED Type : Epistar SMD
LED Quantity : 504PCS
Operating Temperature : -40°C~45°C
Storage Temperature : -40°C~85°C
Life Time : 50,000h
Warranty : 5 years
High Brightness 360 Degree E39 E40 60W LED Corn Cob Bulb Lights For Warehouse Lighting
Features
• >130lm/w, E39, E40 are available.
• Universal AC input 100-277Vac.
• Protections: Short circuit / Over current / Over temperature protection.
• Aluminum heat sink with fins.
• Sealing glue helps improve the fixture's efficiency while dissipating heat.
• Clear or diffused, milky cover, transparent cover, without cover available.
Technical Data
Electrial Data
Input Voltage | 100-277VAC 50/60 Hz | THD | <15 |
Wattage | 60W | Power Factor | >0.95 |
Photomitrical Data
Lens | Milky Lens | Transparent Lens | Without Lens |
Rated Luminous Flux | 6600LM±4% | 7200LM±4% | 7800LM±4% |
Luminuos Efficiency | 110LM/W | 120LM/W | 130LM/W |
Color Rendering Index | Ra>80 Ra>70 | ||
Color Temperature | 2700-3500K, 4000-4500K, 5000-5500K, 6000-6500K |
Light Technical Data
LED Type | Epistar | Max Temperature $ Ta=25℃% | Tmax=56℃ |
LED QTY | 504PCS | Thermal Protection(Half-Power) | 95Ⅱ |
Beam Sbreads | 360° | Power Recovrey Temperature | 50Ⅱ |
Starting Time | <0.5s | Operating Temperature $Abient% | -40°C~45°C |
Dimming | No | Storage Temperature | -40°C~85°C |
Life Time | 50,000h | Warranty | 5 years |

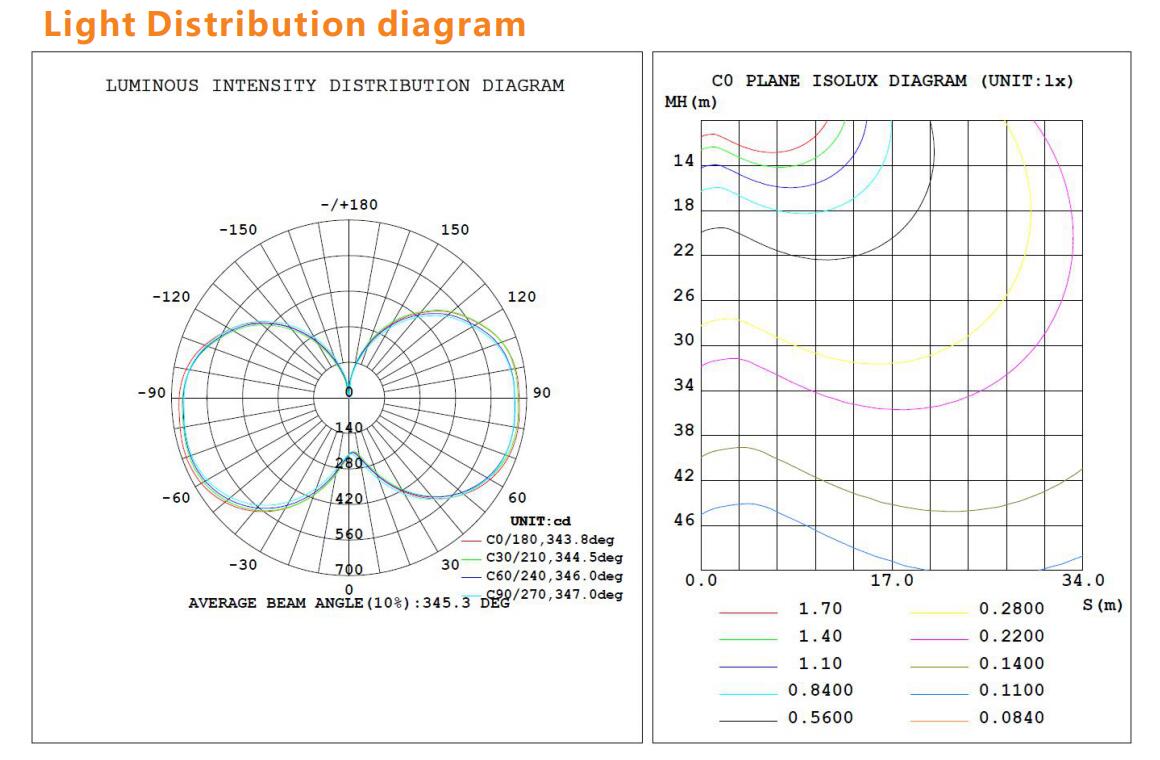

Light Distribution Diagram

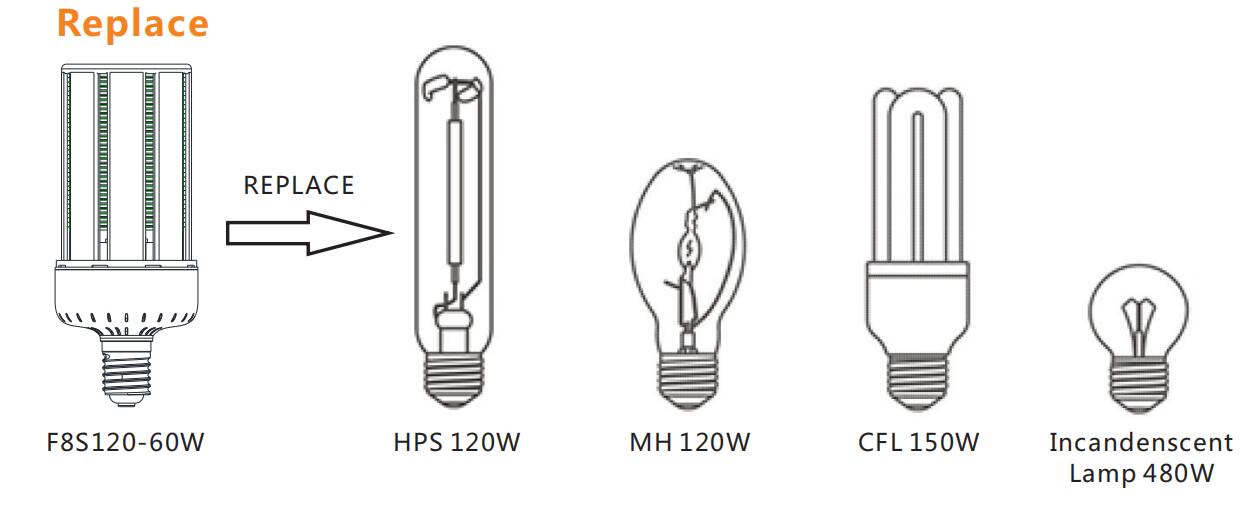

Replacement

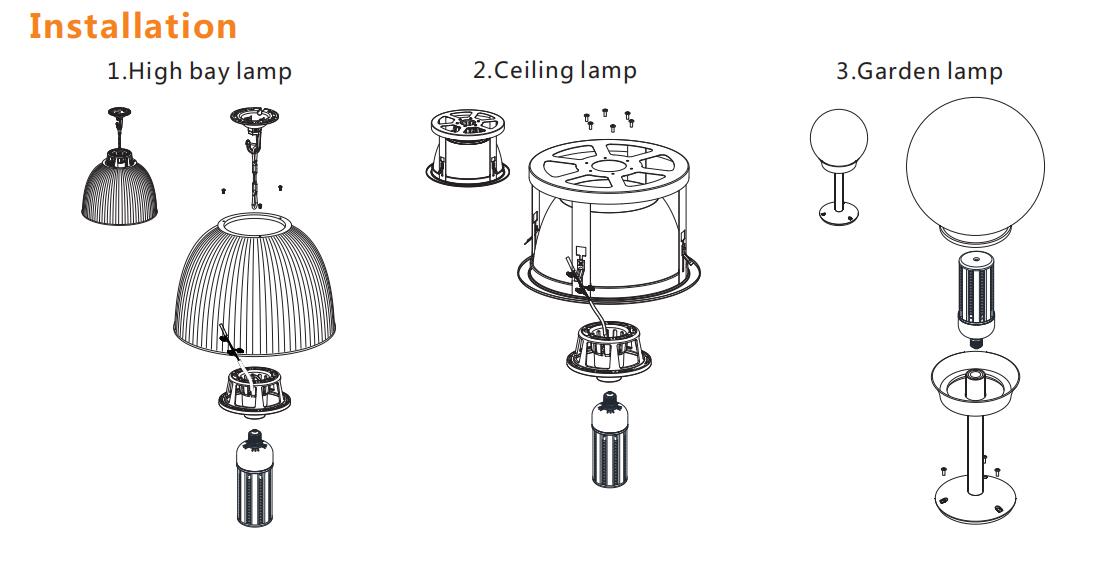

Installation

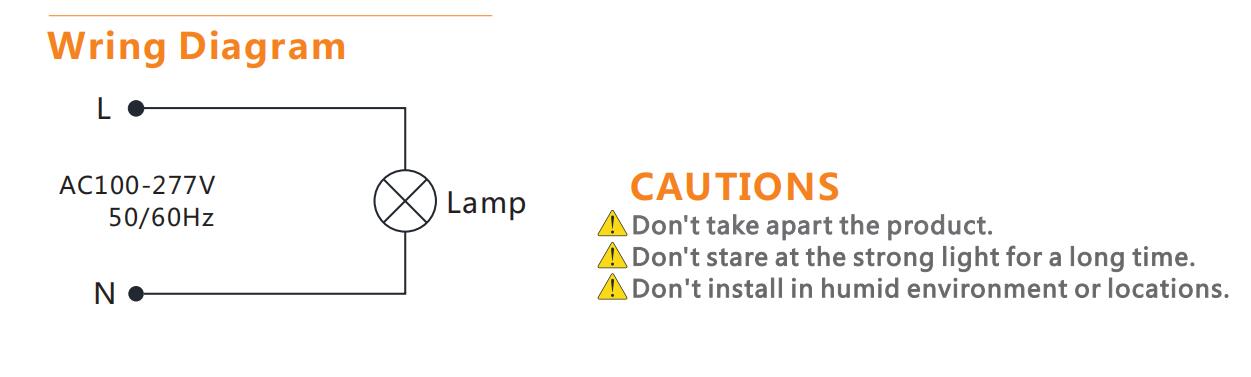

Wiring Diagram

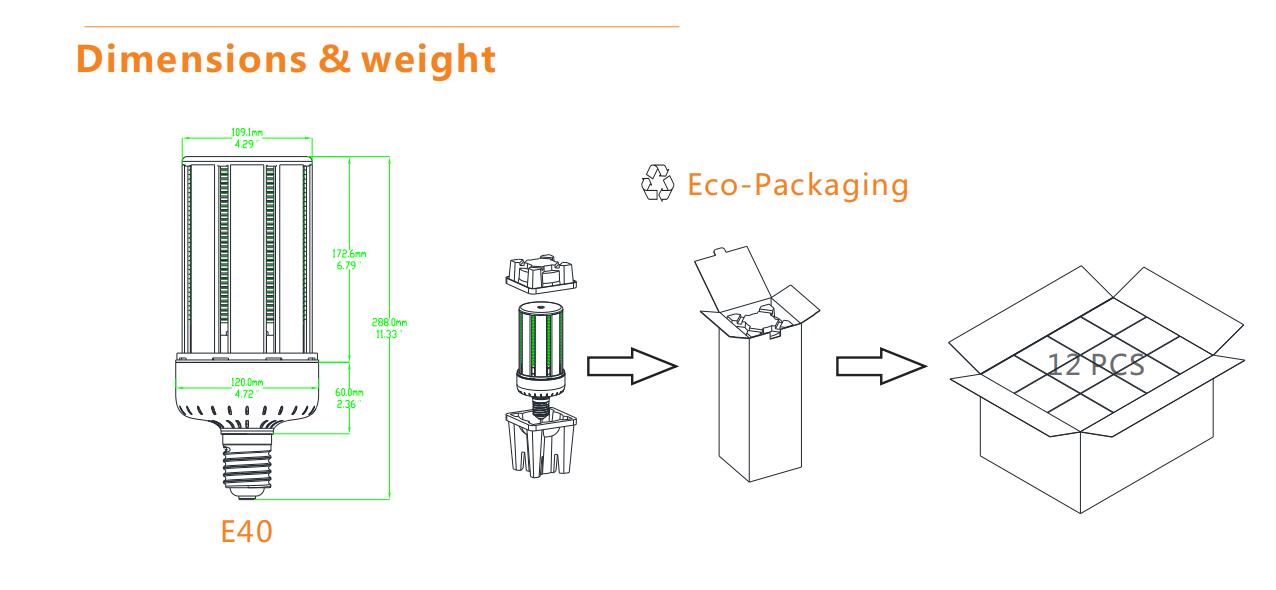

Product Dimension And Packing

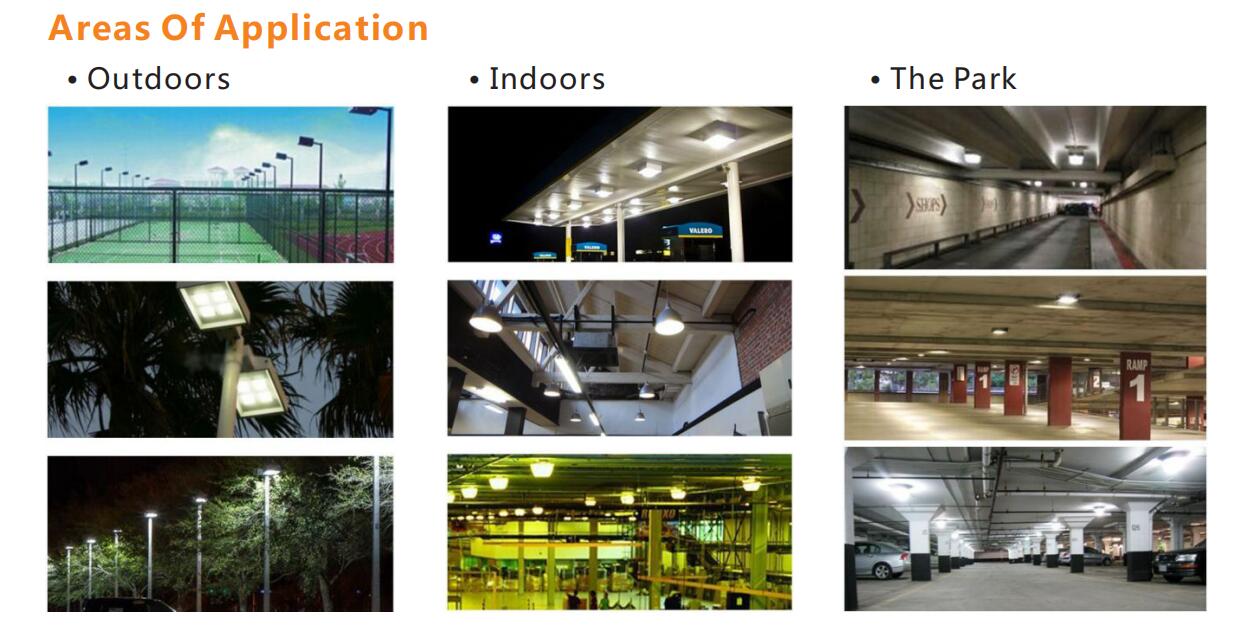

Application
![]() |
360 Degree 60W Corn Cob LED Lights Warehouse Lighting Use E39 E40 Available Images |
