IP67 IK10 22500Lm Dimmable 150Lm/W 150W UFO LED High Bay Lighting For Food Facilities
Features of UFO LED High Bay Lighting
1. This products have got NSF IP69K IK10 certification
2. This product is mainly be used in clean food/ pharmaceutical and any other manufacture plant
3. The product design with no screw on the front. So there is almost no dusty in smooth back, it is easy for clean and no
screw or any other small part dropped when is cleaned by high-press water gun.
4. The product surface coating get REACH/ROHS/HALOGEN test report by SGS
5. The structure of lamp is made of aluminum alloy; the lens is made of optical grade material of Mitsubishi Corporation of Japan.
The color of lamp is orange RAL2004
6. The lens has been applied for patent and patent filings by Chinese custom,the record number is P2018-72651
| Item | CHBL-100 | CHBL-120 | CHBL-150 |
| Power | 100W | 120W | 150W |
| Input Voltage | 90-305VAC | 90-305VAC | 90-305VAC |
| Input Current | 0.47A@220VAC | 0.57A@220VAC | 0.68A@220VAC |
| PF | >0.90@220VAC | >0.90@220VAC | >0.90@220VAC |
| Dimming Option MOSO | 2 in 1 dimming (PWM, 0-10V) | 2 in 1 dimming (PWM, 0-10V) | 2 in 1 dimming (PWM, 0-10V) |
| Dimming Option Meanwell | 3 in 1 dimming (PWM, 0-10V, Resistor) / Dali | 3 in 1 dimming (PWM, 0-10V, Resistor) / Dali | 3 in 1 dimming (PWM, 0-10V, Resistor) / Dali |
| Ra>80 Luminous Flux | 14000Lm | 16800Lm | 21000Lm |
| Ra>70 Luminous Flux | 16000Lm | 19200Lm | 24000Lm |
| LED Brand | Cree SMD 3030 / LUMILEDS 3030 | Cree SMD 3030 / LUMILEDS 3030 | Cree SMD 3030 / LUMILEDS 3030 |
| Beam Angle | 60°90°120° | 60°90°120° | 60°90°120° |
| Operation Temp | -40℃ ~ +45℃ | -40℃ ~ +45℃ | -40℃ ~ +45℃ |
| Storage Temp | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ |
| Lifespan | 25℃ 50000Hours | 25℃ 50000Hours | 25℃ 50000Hours |
| IP rating | IP69K | IP69K | IP69K |
| IK rating | IK10 | IK10 | IK10 |
| Certificates | ETL, CE,SAA,ROHS,NSF | ETL, CE,SAA,ROHS,NSF | ETL,CE,SAA,ROHS,NSF |
| Lamp Body Color | Orange( RAL2004) | Orange( RAL2004) | Orange( RAL2004) |
| Product Size(mm) | 400*400*197 | 400*400*197 | 400*400*197 |
| Net Weight(kg) | 5.6kg | 5.6kg | 5.6kg |
| Packing Size(mm) | 480*480*220 | 480*480*220 | 480*480*220 |
| Gross Weight(kg) | 6.8kg | 6.8kg | 6.8kg |
| Installation Way | Hook Mount/Pendant Mount | Hook Mount/Pendant Mount | Hook Mount/Pendant Mount |
Product Dimension
Sunluxx Warranty
1. Warranty time is 5 years and effected from the date of original purchase.
2. Warranty is only available for customers who purchase directly from Sunluxx, during the warranty time:
(1) New driver will be sent if driver failed.
(2) New LED board will be sent if LED failed.
(3) New Replacement will be sent depend on the level of damage or the specific causes of defectives.
3. Warranty does not cover damages caused by abuse, misuse, improper environmental conditions, natural disaster,wrong installation,etc.
We are so happy to serve you!

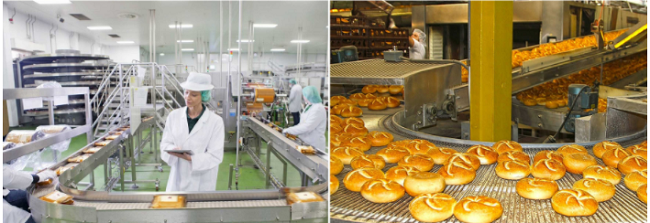

Applications
